PRODUCT FEATURES

MS / SS Housing

Available in Mild Steel (MS) and Stainless Steel (SS) on four wheels

Electronic Sensor

To prevent splash droplets from entering the pump.

Vacuum Gauge

2.5 inches round vacuum gauge

Pump

A single head rotary vane pump

Maximum Vacuum

Max. vacuum

-650 mm Hg

Liter per minute

LPM

42 Ltrs / min

Noise Level

50 dB A ± 3

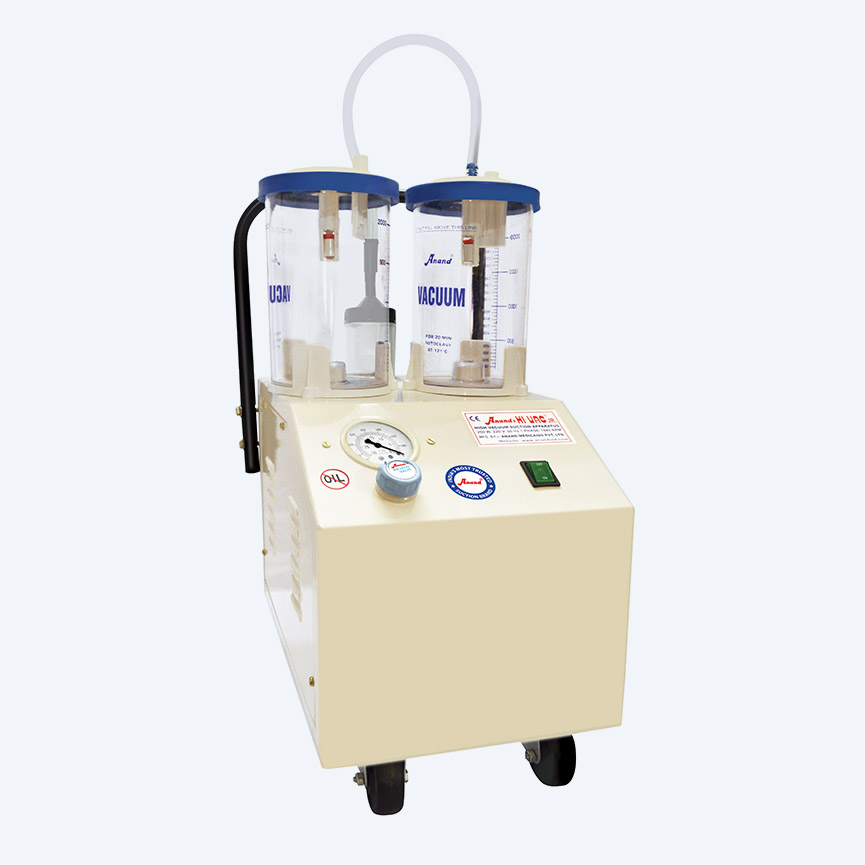

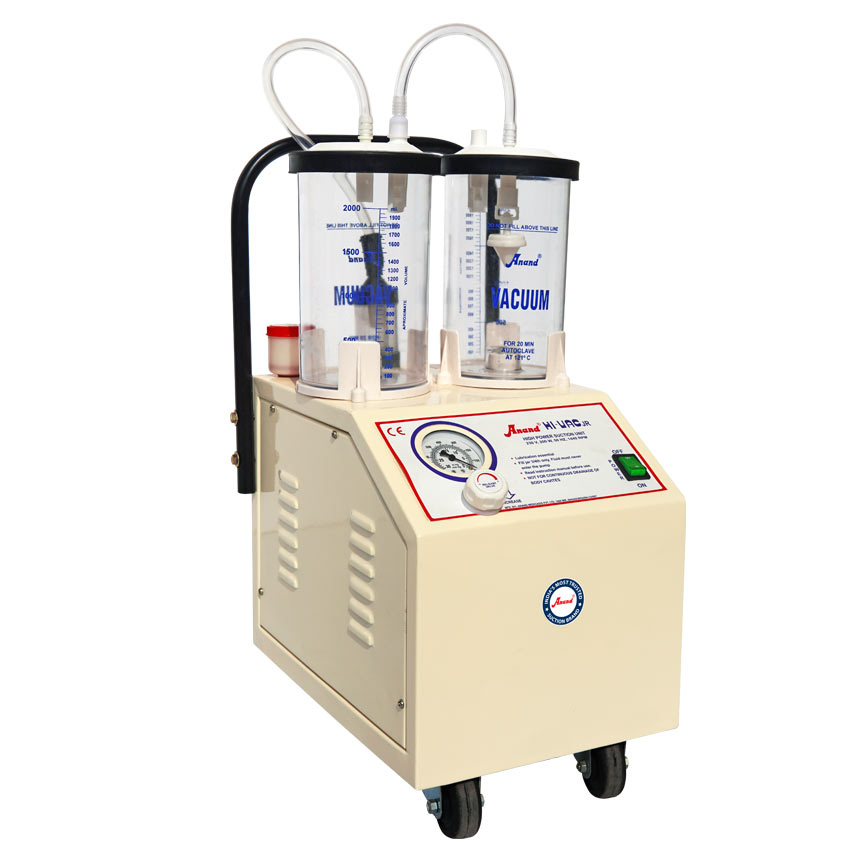

Hi-Vac-Jr Suction Unit
Net Weight

Net Weight

25 Kg

Dimensions

Dimensions

39 x 31 x 62 cms

Suction Jars

Jars

2 x 2 Ltrs. PC Jar

  Housing MS / Stainless Steel on four castors
  Max. Vacuum / LPM -650 mm Hg, 30 Ltrs / min
  Pump Type Rotary Vane Pump
  Jars 2 x 2 Ltrs. PC Jar
  Filter Trap Filter with inbuilt overflow protection
  Tubing 10 mm ID x 2 mtr. (PVC)
  Vacuum Gauge 6.25 cm dia 0-760 mm Hg
  Power Supply 220 V AC, 50 / 60 Hz, 130 Watt
  Noise Level 50 dB A ± 3
  Dimensions 39 x 31 x 62 cms
  Net Weight 25 Kg
  Overflow Safety Dual Mechanical
  Optional Foot switch / Bacterial filter / 110 V / Oil-free Piston Pump
  Certifications CE, IEC 60601-1-2012

Technical Information for Hi Vac JR.
Instruction Manual for Hi Vac JR.
