PRODUCT FEATURES

Housing

ABS Plastic Moulded

Vacuum Gauge

2.5 inches Round Vacuum Gauge

Pump

Oil-free piston pump – Low Maintenance

Maximum Vacuum

Max. vacuum

-700 mm Hg

Liter per minute

LPM

25 Ltrs / min

Noise Level

55 dB A ± 3

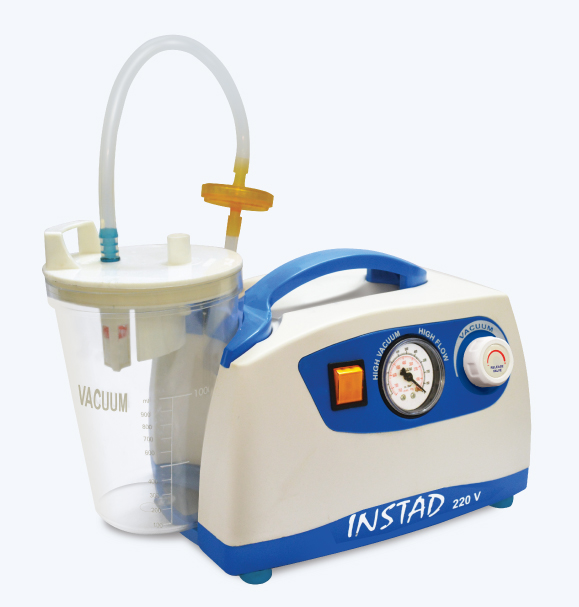

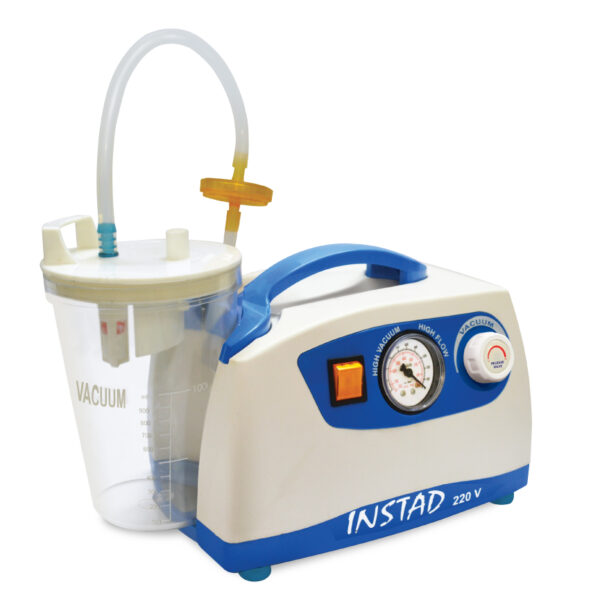

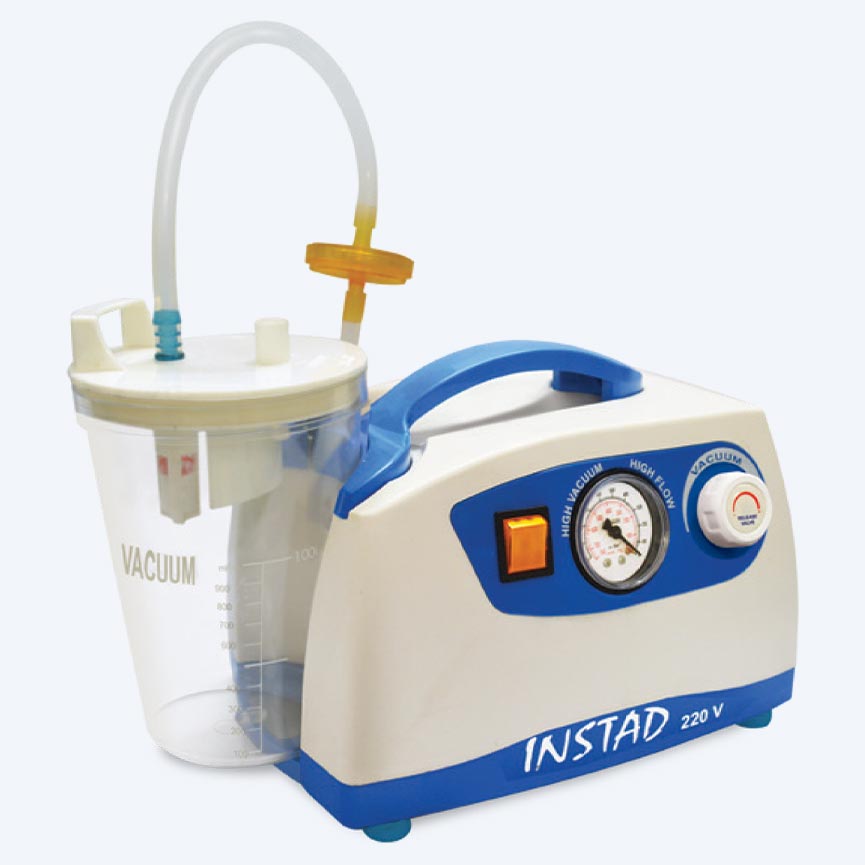

Instad AC Suction Unit Machine
Net Weight

Net Weight

4 Kg

Dimensions

Dimensions

39 x 22 x 22 cms

Suction Jars

Jars

1 x 1 Ltr. PC Jar

  Housing ABS Plastic Moulded
  Max. Vacuum / LPM -700 mm Hg, 25 Ltrs / min
  Pump Type Piston Pump
  Jars 1 x 1 Ltr. PC Jar
  Filter Bacterial Filter Autoclavable / Reusable
  Tubing 8 mm ID x 2 mtr. (Silicon)
  Vacuum Gauge 5 cm dia 0-760 mm Hg
  Power Supply 220 V AC, 50 / 60 Hz, 65 Watt
  Battery N/A
 Battery Backup / Operative Time N/A
  Noise Level 55 dB A ± 3
  Dimensions 39 x 22 x 22 cms
  Net Weight 4 Kg
  Overflow Safety Mechanical & Electronic Sensor
  Accessories

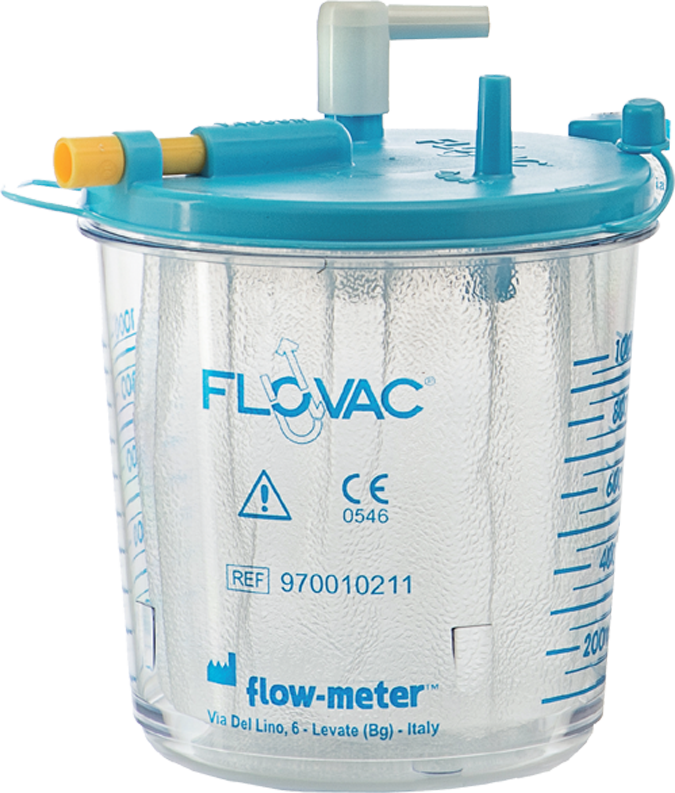

  Optional 1 Ltr Disposable Jar with liner / 110 V
  Certifications CE, IEC 60601-1-2012
