PRODUCT FEATURES

Housing

ABS Plastic moulded housing

3 Stage LED Indicator

for Battery Status

Pump

Oil-free piston pump – Low Maintenance

Maximum Vacuum

Max. vacuum

-600 mm Hg

Liter per minute

LPM

21 Ltrs / min

Battery

Battery

Lead Acid Battery
- 90 minutes (with fully charged /new battery)

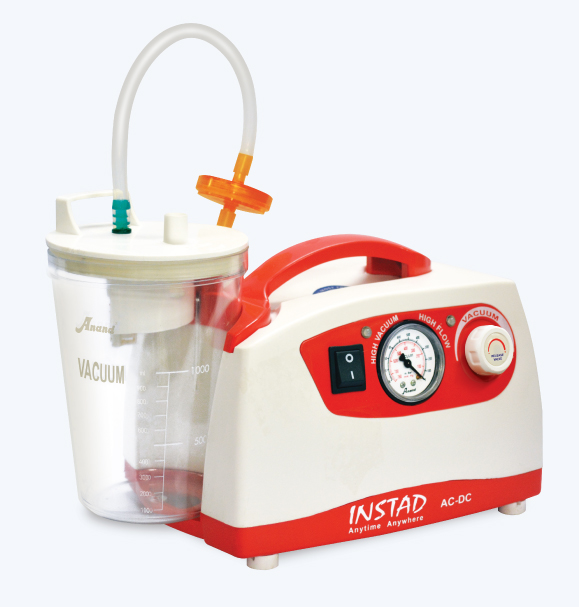

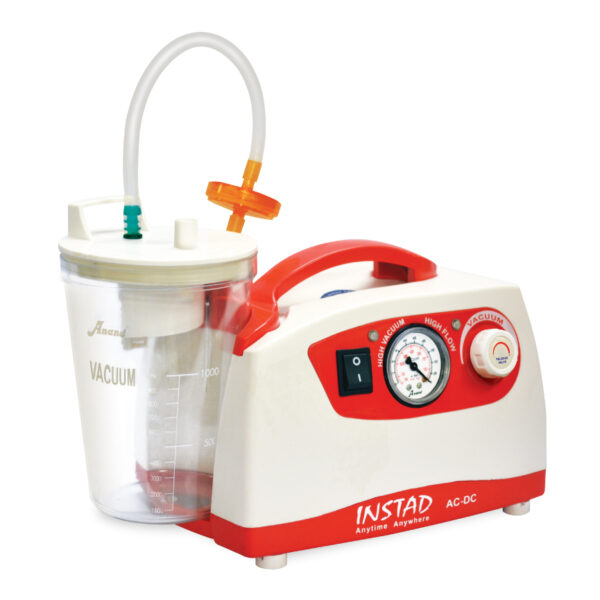

Instad DC Suction Machine
Net Weight

Net Weight

6 Kg

Dimensions

Dimensions

39 x 22 x 22 cms

Suction Jars

Jars

1 x 1 Ltr. PC Jar

  Housing ABS Plastic Moulded & 3 Stage LED Indicator for Battery Status
  Max. Vacuum / LPM -600 mm Hg, 21 Ltrs / min
  Pump Type Piston Pump
  Jars 1 x 1 Ltr. PC Jar
  Filter Bacterial Filter Autoclavable / Reusable
  Tubing 8 mm ID x 2 mtr. (Silicon)
  Vacuum Gauge 5 cm dia 0-760 mm Hg
  Power Supply 220 V AC, 50 / 60 Hz, 70 Watt 12 V DC Internal Rechargeable Battery (12 V 4.5 Amp)
  Battery Lead Acid
 Battery Backup / Operative Time 90 minutes (with fully charged /new battery)
  Noise Level 55 dB A ± 3
  Dimensions 39 x 22 x 22 cms
  Net Weight 6 Kg
  Overflow Safety Mechanical & Electronic Sensor
  Accessories  Car Charger & Power Adaptor
  Optional 1 Ltr Disposable Jar with liner Ni-cd / Li-ion Battery
  Certifications CE, IEC 60601-1-2012

Technical Information for Instad AC / DC
Instruction Manual for Instad AC / DC
