PRODUCT FEATURES

Changeover Lever

to shift from one jar to other

Electronic Sensor

To prevent splash droplets to enter the pump. The motor will stop and a beep will indicate this.

2.5 Ltrs. PC Jar

Convenient emptying handles on Lid & Jar - Controls Infection

Utility Space

To keep patient tube, catheters, foot switch when the machine is not in use.

Vacuum Gauge

Square Gauge for easy readability

Pump

Double Piston pump

Maximum Vacuum

Max. vacuum

-700 mm Hg

Liter per minute

LPM

90 Ltrs / min

Noise Level

55 dB A ± 3

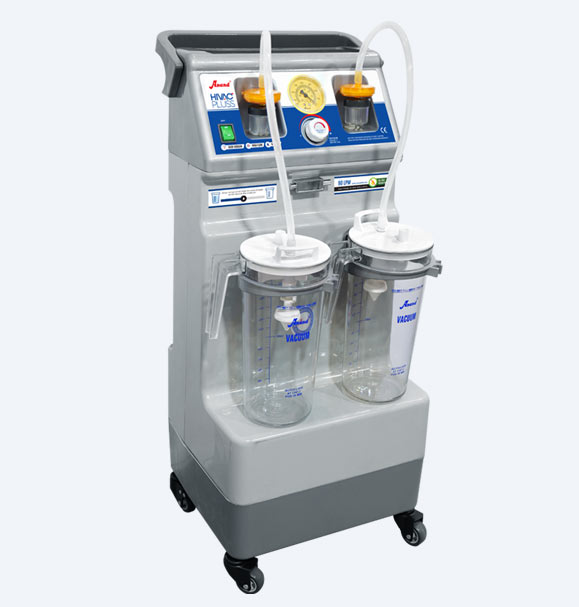

HI Vac Pluss 90 Ltr Suction Unit Machine
Net Weight

Net Weight

23 Kg

Dimensions

Dimensions

46 x 34 x 86 cms

Suction Jars

Jars

2 x 2.5 Ltrs. PC Jar

  Housing Plastic moulded on two wheels with foot switch & changeover lever
  Max. Vacuum / LPM 700 mm Hg, 90 Ltrs / min
  Pump Type Double Piston pump
  Jars 2 x 2.5 Ltrs. PC Jar
  Filter Bacterial Filter Autoclavable / Reusable
  Tubing 10 mm ID x 2 mtr. (PVC)
  Vacuum Gauge 6.25 cm dia 0-760 mm Hg
  Power Supply 220 V AC, 50 / 60 Hz, 580 Watt
  Noise Level 55 dB A ± 3
  Dimensions 46 x 34 x 86 cms
  Net Weight 23 Kg flovac-jar
  Overflow Safety Mechanical & Electronic Sensor
  Optional 4 Ltr. Polysulfone (PSU) Jars 2 Ltr Disposable Jar with liner / 110 V
  Certifications CE, IEC 60601-1-2012

Technical Information for Hi Vac Pluss 90 Ltr.
Instruction Manual for Hi Vac Pluss 90 Ltr.
