Home / Products / Battery Operated Suction Unit

PRODUCT FEATURES

Housing

MS Powder Coated Housing

Electronic Sensor

To prevent splash droplets to enter the pump. The motor will stop and a beep will indicate this.

Vacuum Gauge

2 inches round vacuum gauge

Pump

Oil-free piston pump – Low Maintenance

Maximum Vacuum

Max. vacuum

Electrical: -600 mm Hg
Pedal: 200 ml / push stroke

Liter per minute

LPM

21 Ltrs / min

Battery

Battery

Lead Acid Battery
- 90 minutes (with fully charged /new battery)

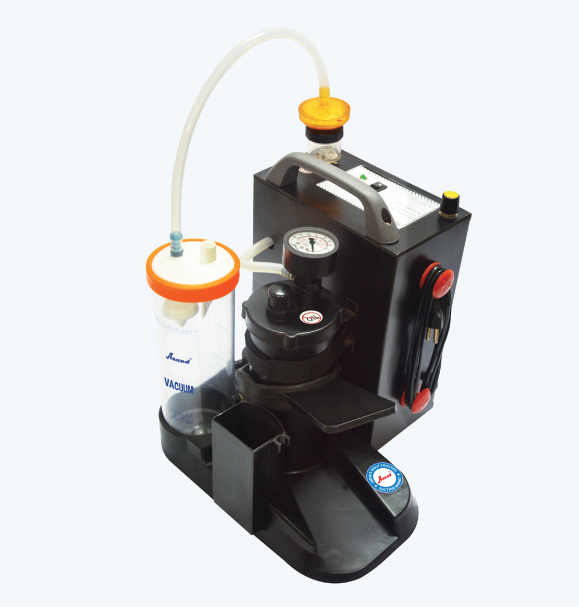

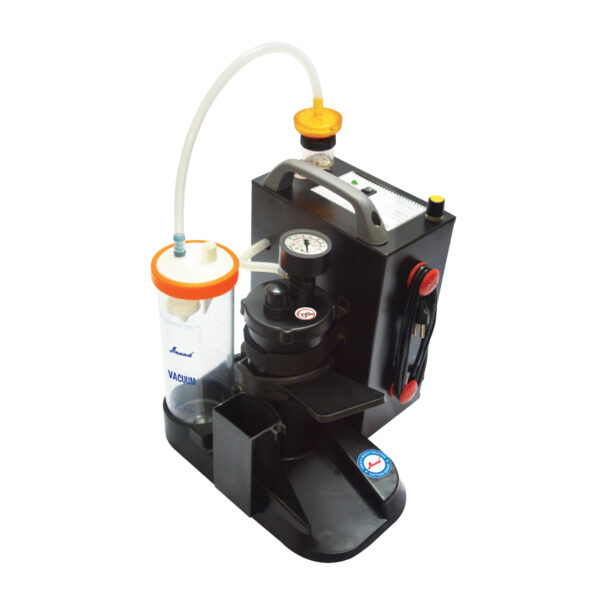

Multivac Suction Machine
Net Weight

Net Weight

8.5 Kg

Dimensions

Dimensions

33 x 30 x 41 cms

Suction Jars

Jars

1 x 1 Ltr. PC Jar

  Housing MS Powder Coated
  Max. Vacuum / LPM Electrical: -600 mm Hg, 21 Ltrs / min Pedal: 200 ml / push stroke
  Pump Type Piston Pump
  Jars 1 x 1 Ltr. PC Jar
  Filter Bacterial Filter Autoclavable / Reusable
  Tubing 8 mm ID x 2 mtr. (Silicon)
  Vacuum Gauge Bourdon type 5 cm dia 0-760 mm Hg
  Power Supply 220 V AC, 50 / 60 Hz, 55 Watt, Electric - Pedal 12 V DC Internal Rechargeable Battery (12 V 4.5 Amp)
  Noise Level 55 dB A ± 3
 Battery Lead Acid
  Battery Backup / Operative Time 90 minutes (with fully charged /new battery)
  Dimensions 33 x 30 x 41 cms
  Net Weight 8.5 Kg
  Overflow Safety Mechanical & Electronic Sensor

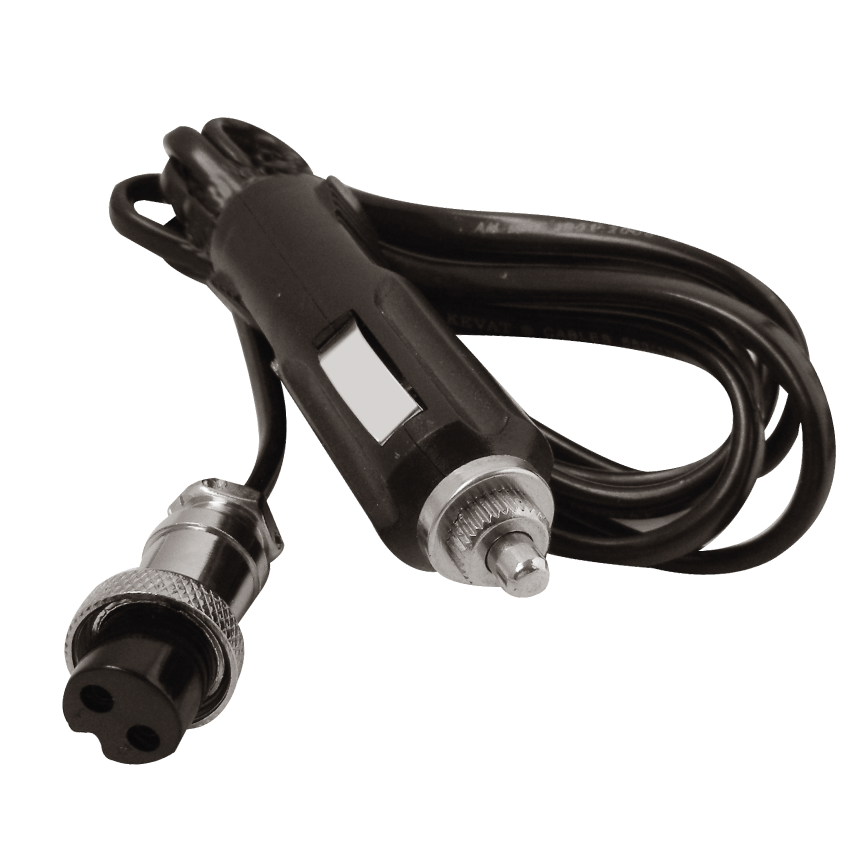

  Accessories  Car Charger & Power Adaptor Charger
  Optional Ni-cd / Li-ion Battery
  Certifications CE, IEC 60601-1-2012
