PRODUCT FEATURES

ABS Plastic moulded Housing

on four castors with Foot Switch

Electronic Sensor

Sensor to prevent splash droplets to enter the pump. The motor will stop and a beep will indicate this.

Oil-free Diaphragm Pump

No-oil maintenance free diaphragm pump.

Maximum Vacuum

Max. vacuum

-575 mm Hg

Liter per minute

LPM

45 Ltrs / min

Noise Level

55 dB A ± 3

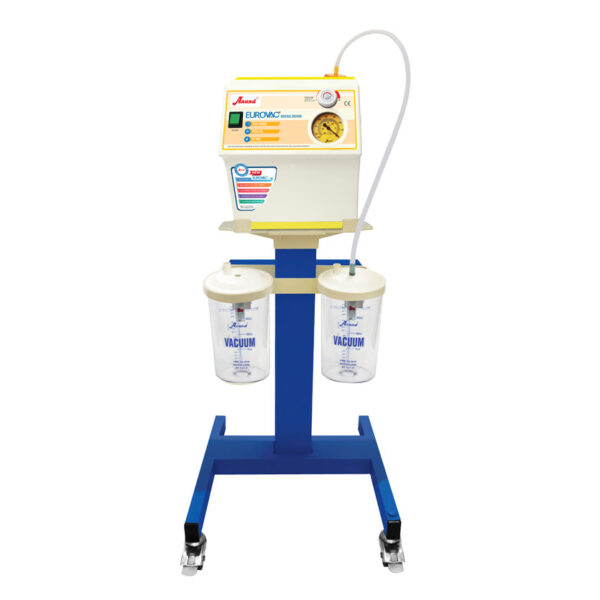

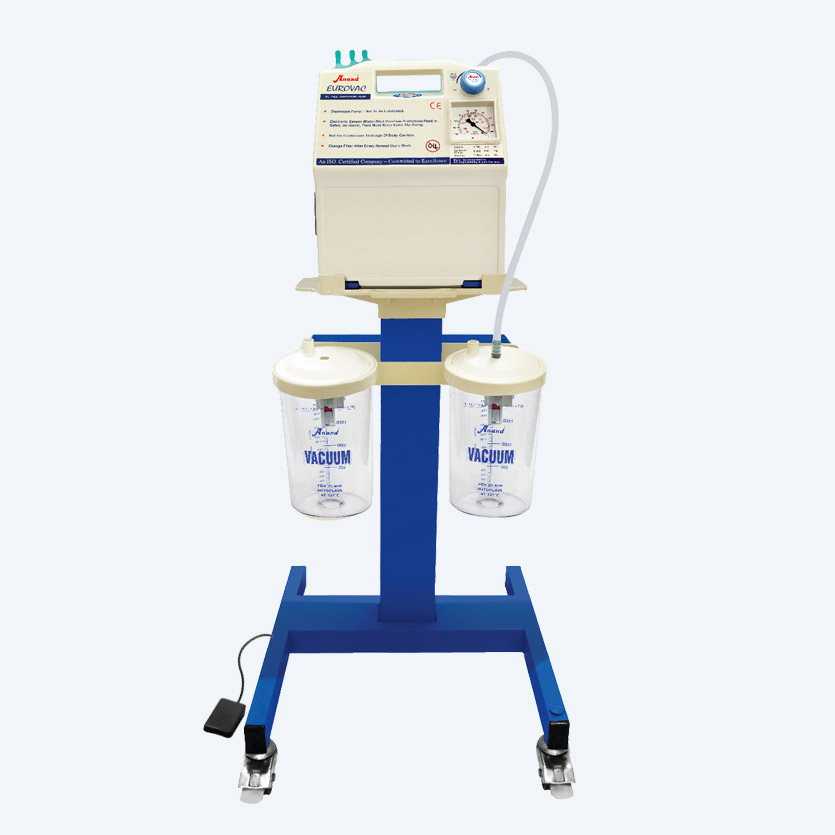

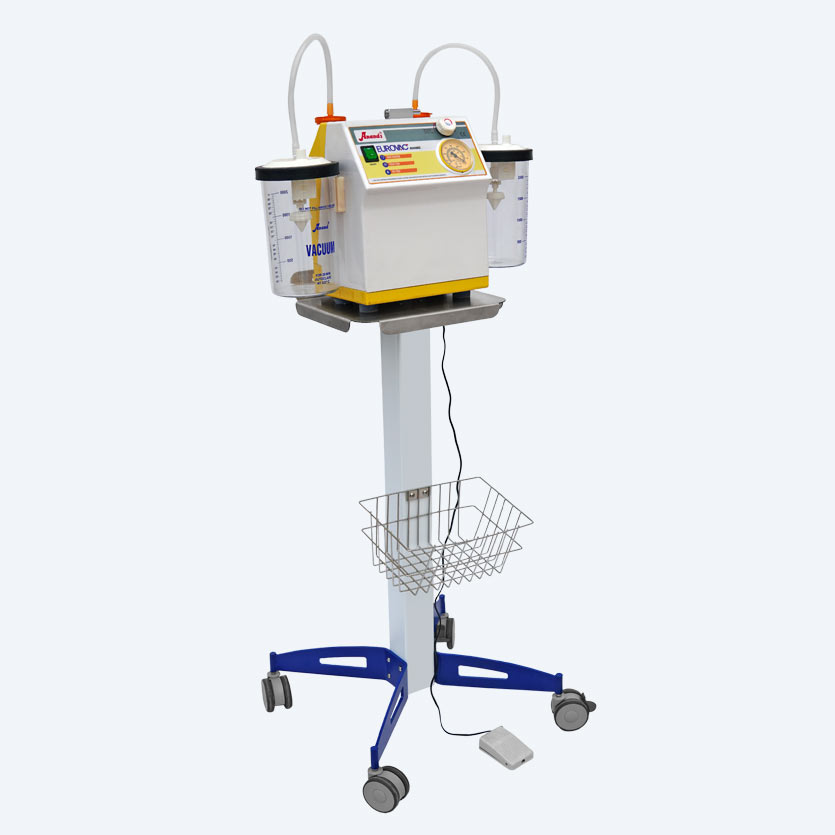

Eurovac On Trolley
Net Weight

Net Weight

8 Kg + 9 Kg Trolley

Dimensions

Dimensions

48 x 48 x 114 cms

Suction Jars

Jars

2 x 2 Ltr. PC Jar

  Housing ABS Plastic Moulded on four castors with Foot Switch
  Max. Vacuum / LPM - 575 mm Hg, 45 Ltrs / min
  Pump Type Diaphragm Pump
  Jars 2 x 2 Ltr. PC Jar
  Filter Bacterial Filter Autoclavable / Reusable
  Tubing 8 mm ID x 2 mtr. (Silicon)
  Vacuum Gauge 6.25 cm dia 0-760 mm Hg
  Power Supply 220 V AC, 50 / 60 Hz 90 Watt
  Battery N/A
  Battery Backup / Operative Time N/A
  Noise Level 55 dB A ± 3
  Dimensions 48 x 48 x 114 cms
  Net Weight 8 Kg + 9 Kg Trolley flovac-jar
  Overflow Safety Mechanical & Electronic Sensor
  Optional 1 or 2 Ltr Disposable Jar with liner / 110 V
  Certifications CE, IEC 60601-1-2012

Technical Information for Eurovac on Trolley
Instruction Manual for Eurovac on Trolley
